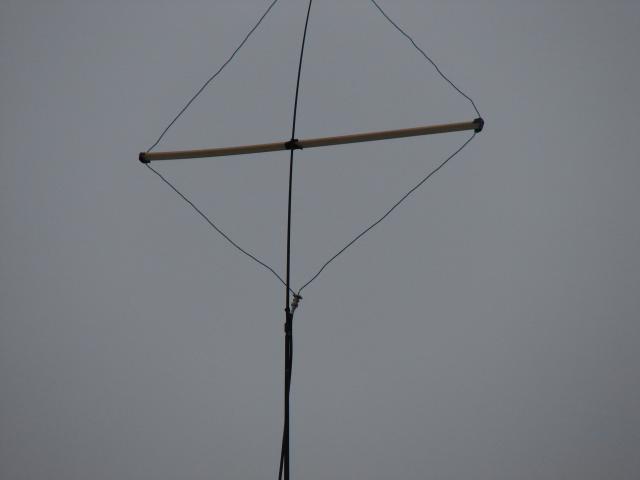

2 Meter Loop extended, closeup 1
4 of 8
There is a quarter-wavelength section of 75 ohm cable for matching purposes. The loop has a characteristic impedance of about 100 ohms, so the 75-ohm section transforms the impedance down to 50 ohms.
There is a quarter-wavelength section of 75 ohm cable for matching purposes. The loop has a characteristic impedance of about 100 ohms, so the 75-ohm section transforms the impedance down to 50 ohms.
